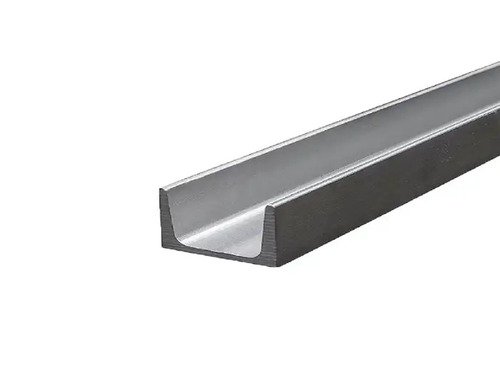

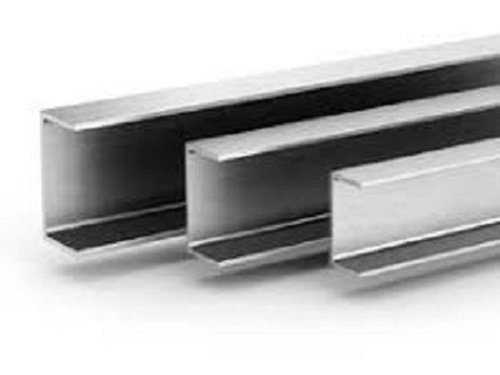

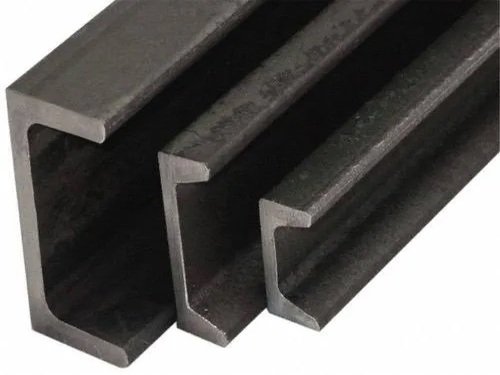

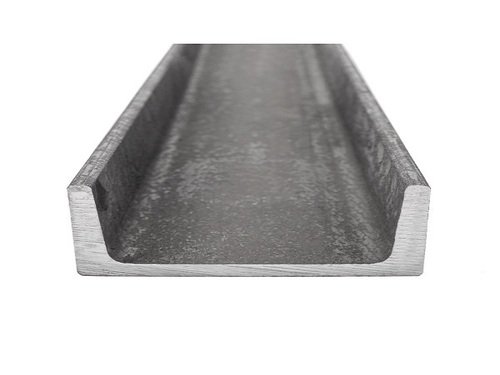

UPN BEAM
They are shaped like an upside-down U, with a narrow base and two parallel flanges on the top and bottom.
UPN steel beams are used in a variety of structural applications, such as supporting floors, roofs, and walls.
They provide a robust and durable solution due to their high strength-to-weight ratio.
They are also easy to fabricate, transport, and install.
| Description | Weight (kg/m) | H (mm) | D (mm) | TW (mm) |
|---|---|---|---|---|
| UPN 30×15×4 | 1.74 | 30 | 15 | 4.00 | UPN 35×17.5×4 | 2.16 | 25 | 17.50 | 4.00 | UPN 40×20×5 | 2.87 | 40 | 20 | 5.00 | UPN 40×35×5 | 4.87 | 40 | 35 | 5.00 | UPN 50×25×5 | 3.86 | 50 | 25 | 5.00 | UPN 50×38×5 | 5.59 | 50 | 38 | 5.00 | UPN 60×30×6 | 5.07 | 60 | 30 | 6.00 | UPN 65×42×5.5 | 7.09 | 65 | 42 | 5.50 | UPN 70×40×6 | 6.77 | 70 | 40 | 6.00 | UPN 80×45×6 | 8.64 | 80 | 45 | 6.00 | UPN 100×50×6 | 10.60 | 100 | 50 | 6.00 | UPN 120×55×7 | 13.40 | 120 | 55 | 7.00 | UPN 140×60×7 | 16.00 | 140 | 60 | 7.00 | UPN 160×65×7.5 | 18.80 | 160 | 65 | 7.50 | UPN 180×70×8 | 22.00 | 180 | 70 | 8.00 | UPN 200×75×8.5 | 25.30 | 200 | 75 | 8.50 | UPN 220×80×9 | 29.40 | 220 | 80 | 9.00 | UPN 240×85×9.5 | 33.20 | 240 | 85 | 9.50 | UPN 260×90×10 | 37.90 | 260 | 90 | 10.00 | UPN 280×95×10 | 41.80 | 280 | 95 | 10.00 | UPN 300×100×10 | 46.20 | 300 | 100 | 10.00 | UPN 320×100×14 | 59.50 | 320 | 100 | 14.00 | UPN 350×100×14 | 60.60 | 350 | 100 | 14.00 | UPN 380×102×13.5 | 63.10 | 380 | 102 | 13.50 | UPN 400×110×14 | 71.80 | 400 | 110 | 14.00 |
