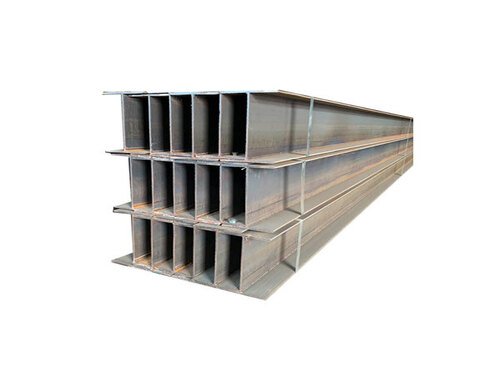

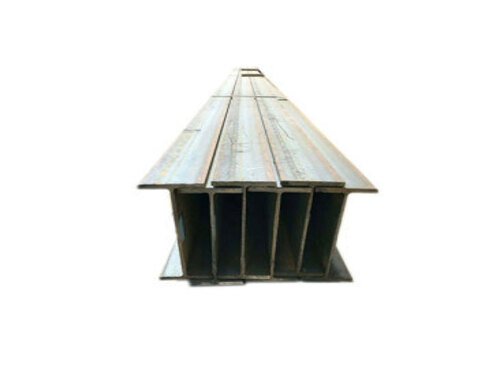

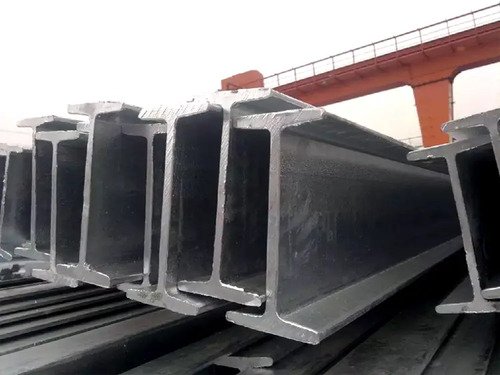

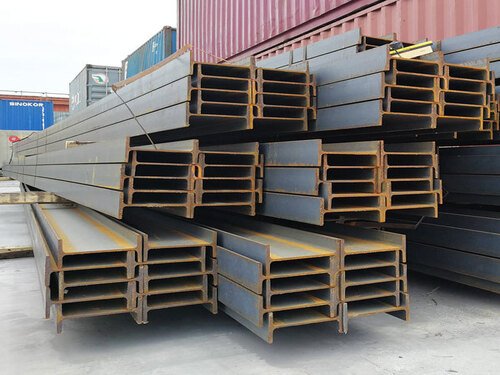

IPN SECTION BEAM
An IPN section beam is a type of hot-rolled steel beam that has a narrow flange and a wide web.
These beams are highly resistant to bending and can support large loads over long spans, making them suitable foe a wide range of applications.
| Description | Weight (kg/m) | H (mm) | D (mm) | TW (mm) | TF (mm) |
|---|---|---|---|---|---|
| IPN 80 | 6.10 | 80 | 42 | 3.90 | 5.90 | IPN 100 | 8.48 | 100 | 50 | 4.50 | 6.80 | IPN 120 | 11.36 | 120 | 58 | 5.10 | 7.70 | IPN 140 | 14.56 | 140 | 66 | 5.70 | 8.60 | IPN 160 | 18.24 | 160 | 74 | 6.30 | 9.50 | IPN 180 | 22.32 | 180 | 82 | 6.90 | 10.40 | IPN 200 | 26.72 | 200 | 90 | 7.50 | 11.30 | IPN 220 | 31.80 | 220 | 98 | 8.10 | 12.20 | IPN 240 | 37.10 | 240 | 106 | 8.70 | 13.10 | IPN 260 | 43.00 | 260 | 113 | 9.40 | 14.10 | IPN 280 | 49.10 | 280 | 119 | 10.10 | 15.20 | IPN 300 | 55.50 | 300 | 125 | 10.80 | 16.20 | IPN 320 | 62.50 | 320 | 131 | 11.50 | 17.30 | IPN 340 | 69.80 | 340 | 137 | 12.20 | 18.30 | IPN 360 | 78.00 | 360 | 143 | 13.00 | 19.50 | IPN 380 | 86.10 | 380 | 149 | 13.70 | 20.50 | IPN 400 | 94.70 | 400 | 155 | 14.40 | 21.60 | IPN 450 | 118.10 | 450 | 170 | 16.20 | 24.30 | IPN 500 | 144.20 | 500 | 185 | 18.00 | 27.00 | IPN 550 | 170.50 | 550 | 200 | 19.00 | 30.00 |
