IPE

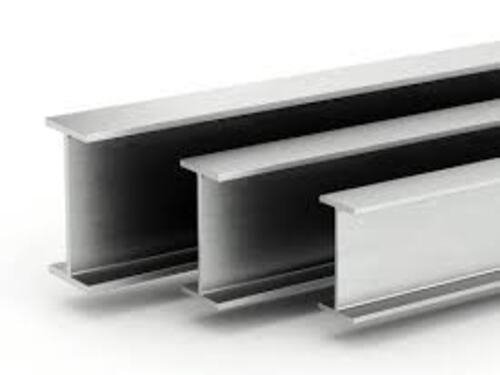

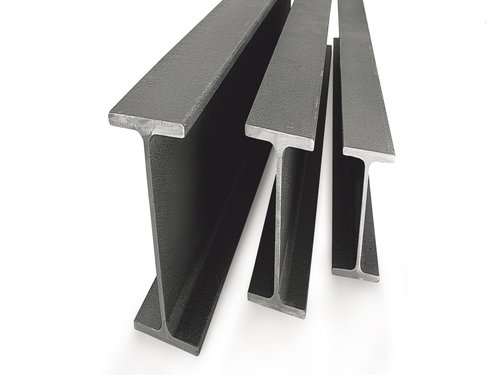

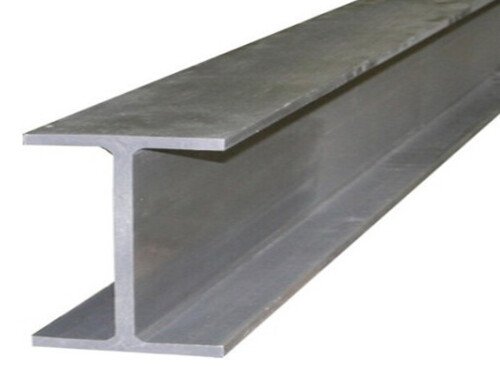

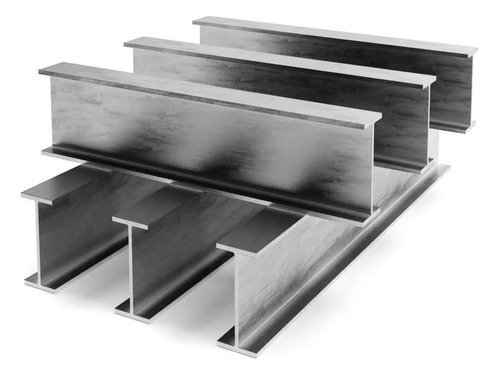

IPE steel beams have a specific profile that includes a wide flange and parallel flanges joined by a central web.
This design provides excellent load-bearing capacity and structural support.
The beam’s shape allows for better distribution of weight and reduces the risk of branding or collapsing under heavy loads.
| Description | Weight (kg/m) | H (mm) | D (mm) | TW (mm) | TF (mm) |
|---|---|---|---|---|---|
| IPE80 | 5.00 | 78 | 46 | 3.30 | 4.20 |
| IPE100 | 6.70 | 98 | 55 | 3.60 | 4.70 |
| IPE120 | 8.50 | 117.60 | 64 | 3.80 | 5.10 |
| IPE140 | 10.40 | 137.40 | 73 | 3.80 | 5.60 |
| IPE160 | 12.40 | 157 | 82 | 4.00 | 5.90 |
| IPE180 | 15.10 | 177 | 91 | 4.30 | 6.50 |
| IPE200 | 17.80 | 197 | 100 | 4.50 | 7.00 |
| IPE220 | 21.60 | 217 | 110 | 5.00 | 7.70 |
| IPE240 | 25.10 | 237 | 120 | 5.20 | 8.30 |
| IPE270 | 29.80 | 267 | 135 | 5.50 | 8.70 |
| IPE300 | 35.70 | 297 | 150 | 6.10 | 9.20 |
| IPE330 | 41.60 | 327 | 160 | 6.50 | 10.00 |
| IPE360 | 49.00 | 357.60 | 170 | 6.60 | 11.50 |
| IPE400 | 55.50 | 397 | 180 | 7.00 | 12.00 |
| IPE450 | 65.40 | 447 | 190 | 7.60 | 13.10 |
| IPE500 | 77.90 | 497 | 200 | 8.40 | 14.50 |
| IPE550 | 89.90 | 547 | 210 | 9.00 | 15.70 |
| IPE600 | 105.70 | 597 | 220 | 9.80 | 17.50 |
| Description | Weight (kg/m) | H (mm) | D (mm) | TW (mm) | TF (mm) |
|---|---|---|---|---|---|
| IPE80 | 6.00 | 80 | 46 | 3.80 | 5.20 |
| IPE100 | 7.90 | 100 | 55 | 4.10 | 5.70 |
| IPE120 | 10.30 | 120 | 64 | 4.40 | 6.30 |
| IPE140 | 12.80 | 140 | 73 | 4.70 | 6.90 |
| IPE160 | 15.50 | 160 | 82 | 5.00 | 7.40 |
| IPE180 | 18.60 | 180 | 91 | 5.30 | 8.00 |
| IPE200 | 21.80 | 200 | 100 | 5.60 | 8.50 |
| IPE220 | 25.70 | 220 | 110 | 5.90 | 9.20 |
| IPE240 | 29.80 | 240 | 120 | 6.20 | 9.80 |
| IPE270 | 35.20 | 270 | 135 | 6.60 | 10.20 |
| IPE300 | 41.50 | 300 | 150 | 7.10 | 10.70 |
| IPE330 | 47.90 | 330 | 160 | 7.50 | 11.50 |
| IPE360 | 56.00 | 360 | 170 | 8.00 | 12.70 |
| IPE400 | 64.60 | 400 | 180 | 8.60 | 13.50 |
| IPE450 | 76.10 | 450 | 190 | 9.40 | 14.60 |
| IPE500 | 89.40 | 500 | 200 | 10.20 | 16.00 |
| IPE550 | 103.60 | 550 | 210 | 11.10 | 17.20 |
| IPE600 | 120.90 | 600 | 220 | 12.00 | 19.00 |
