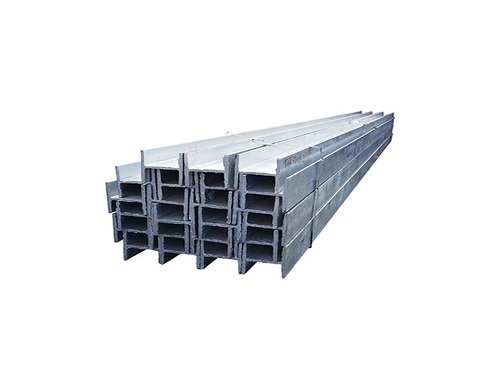

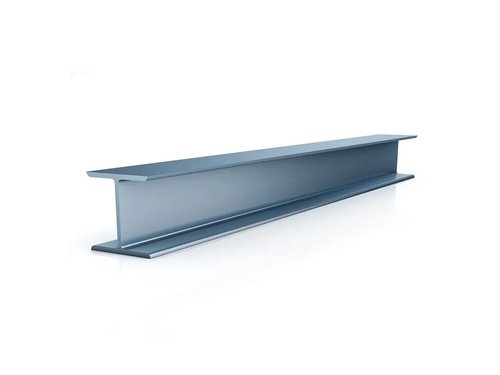

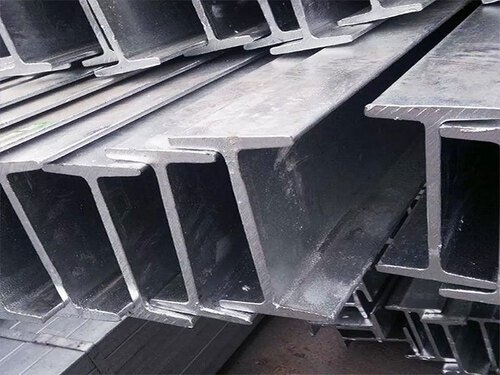

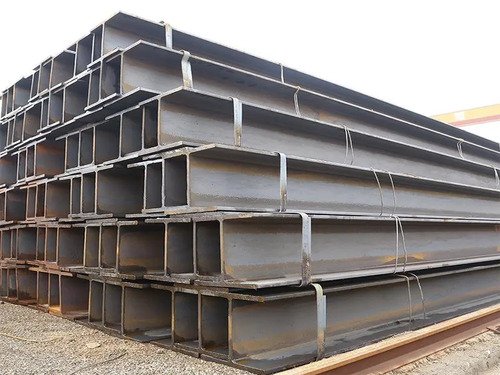

HEB STEEL BEAMS
Are structural stel beams with a wide flange and H-shaped cross-section.
They are often used in construction as load-bearning support structures.
They are highly durable, strong, and resistant to bending and teisting forces.
Making them ideal for use in high-stress applications.
These types of beams have a higher loading capacity.
| Description | Weight (kg/m) | H (mm) | D (mm) | TW (mm) | TF (mm) |
|---|---|---|---|---|---|
| HEB 100 | 19.90 | 100 | 100 | 6.00 | 10.00 | HEB 120 | 26.20 | 120 | 120 | 6.50 | 11.00 | HEB 140 | 33.40 | 140 | 140 | 7.00 | 12.00 | HEB 160 | 12.80 | 160 | 160 | 8.00 | 13.00 | HEB 180 | 50.70 | 180 | 180 | 8.50 | 14.00 | HEB 200 | 60.30 | 200 | 200 | 9.00 | 15.00 | HEB 220 | 70.60 | 220 | 220 | 9.50 | 16.00 | HEB 240 | 81.80 | 240 | 240 | 10.00 | 17.00 | HEB 260 | 90.80 | 260 | 260 | 10.00 | 17.50 | HEB 280 | 101.20 | 280 | 280 | 10.50 | 18.00 | HEB 300 | 114.30 | 300 | 300 | 11.00 | 19.00 | HEB 320 | 124.10 | 320 | 320 | 11.50 | 20.50 | HEB 340 | 131.70 | 340 | 340 | 12.00 | 21.50 | HEB 360 | 139.50 | 360 | 360 | 12.50 | 22.50 | HEB 400 | 153.20 | 400 | 400 | 13.50 | 24.00 | HEB 450 | 169.40 | 450 | 450 | 14.00 | 26.00 | HEB 500 | 185.90 | 500 | 500 | 14.50 | 28.00 | HEB 550 | 198.30 | 550 | 550 | 15.00 | 29.00 | HEB 600 | 211.00 | 600 | 600 | 15.50 | 30.00 | HEB 650 | 224.10 | 650 | 650 | 16.00 | 31.00 | HEB 700 | 240.10 | 700 | 700 | 17.00 | 32.00 | HEB 800 | 261.20 | 800 | 800 | 17.50 | 33.00 | HEB 900 | 290.90 | 900 | 900 | 18.50 | 35.00 | HEB 1000 | 131.90 | 1000 | 1000 | 19.00 | 36.00 |
